Door Lite Kits

Glass

All Metal Stamping lite kits meet the highest standards, fit cutouts, and are IBC-and UL-compliant.

 Before requesting a quote, please review these important notes:

  • open the Glass Listing Comparison in Downloads
  • match the glass type with the correct AMS frame & glass pocket
  • this helps ensure the lite kit will meet UL requirements for size & dimensions necessary to maintain fire ratings
  • glazing tape is included when required, however,
  • many of our rated frames do not require glazing tape, compound, or intumescent in certain applications. See Glazing Tape Conditions
  • for additional frame views, use our Frame Reference Guide


Labeling Policy All Metal Stamping, Inc. labels frames which meet our UL Listings and Approvals. It is the End User’s responsibility to ensure all components used in the openings meet or exceed the fire ratings required.

Fire-Rated

Keralite, Firelite, SuperLite, fire-rated glass

Keralite

Fire-rated 20-180 minutes

Amber tinted ceramic glass

Cat II Safety rated

Available in single pane filmed & laminated

Filmed           Data Sheet & Installation

Laminated   Data Sheet & Installation

safeguard, safety glass, childguard glass, schoolguard glass

KeraliteSAFEGUARD

Delays forced entry by intruders

UL-listed 45 mins fire protective glass

May be retrofitted into labeled fire doors & side-lites.

Data Sheet

Pyroswiss glass, fire-rated glass, fire-rated no hose glass, tempered glass, glazing

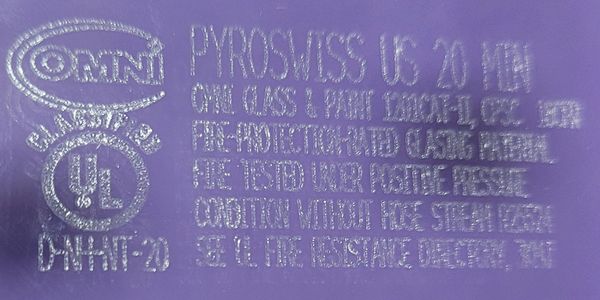

Pyroswiss

Fire-rated to 20 minutes

NO Hose

Cat II Safety rated

Data Sheet & Installation

Fire-rated glass, glazing, lite kits, vision lites, Pyran Platinum

Pyran Platinum(F)

Fire-rated 20-180 minutes

High optical quality, clear glass

Cat II Safety rated

Available in single pane (Platinum-F)

Data Sheet

wired glass

Nu-Wire

Fire-rated 20-90 minutes

Cat II Safety rated

Data Sheet


Laminated & Tempered

mirrored security glass

Arctic Snow White

1/4"

3/8"

Data Sheet

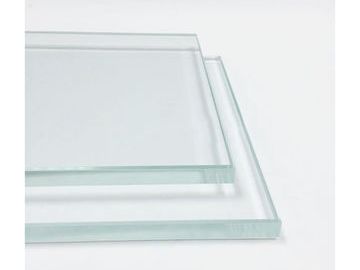

Clear Laminated

1/4"          3/8"

1/2"          1/2" with Interlayer

5/8"

Polar White

1/4"

Data Sheet

Mirror

1/4"

Clear Tempered

1/4''    3/8''    1/2''

gray tinted glass

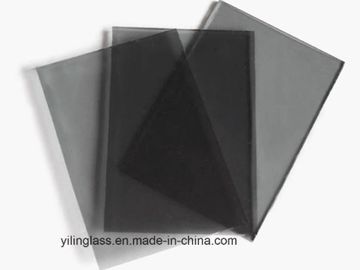

Grey Tempered

1/4"

frosted glass, polar white

4MM Acid Etched

1/4" Tempered, Acid Etch finish gives a satin or frosted appearance.

Data Sheet

reeded glass

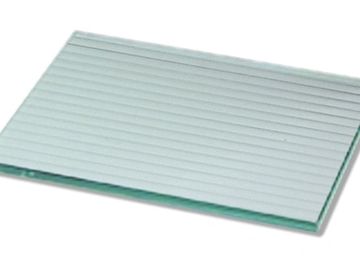

Tempered Reeded

1/4"

tempered rain glass

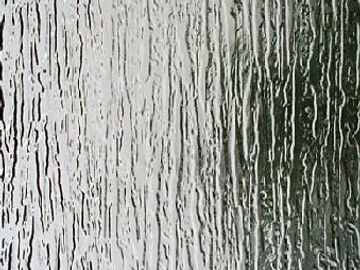

Tempered Rain

3/16"

gray mirropane glass

Mirropane by Pilkington- Gray

1/4" One-way mirror for undetected surveillance & privacy.

Data Sheet


Insulated Glass Units

Non-rated IGUs are available with or without argon and come in 3 different thicknesses. When ordering lite kits with non-rated IGU's, we recommend frame model 118 or 118M.

IGU, insulated glass unit, double glazing, triple glazing

IGU w/ NO Argon

Cat II Safety rating

1/2"     5/8"     1"

Data Sheet

Insulated glass units

IGU w/ Argon

Cat II Safety rating

5/8"      1"

Data Sheet


Polycarbonate

Available in 1/4", 3/8", 1/2", and .236 Abrasion Resistant.

Downloads

Nu-Wire Data (pdf)Download
IGU Data (pdf)Download
Pilkington Mirropane Data (pdf)Download
Arctic Snow & Polar White Data (pdf)Download
Acid Etched Data (pdf)Download
